Piper Aircraft PA-32 instrument panel
The PA-32 panel template at the panel's dimensions, 35.67 × 9.93 inches. Lay out your instruments and avionics on it to scale, export the picture and the equipment list, or send it to our shop for CAD, Cut, Paint & Label.
96 panels laid out on this template
Also written PA32 or PA 32.

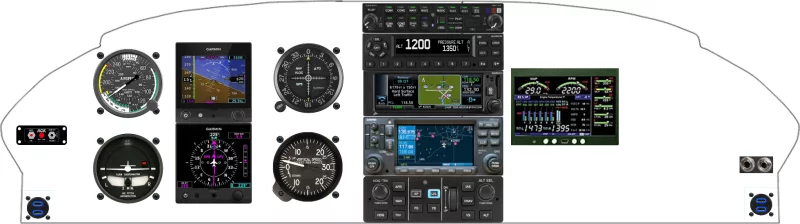

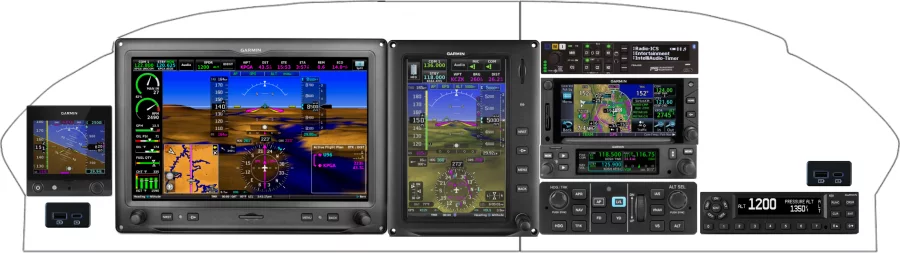

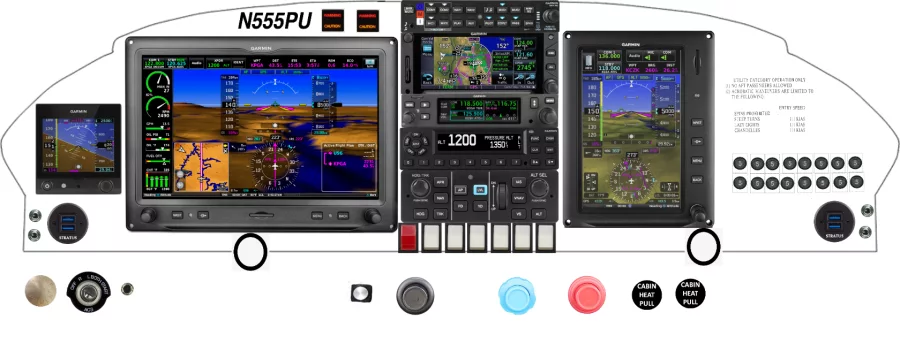

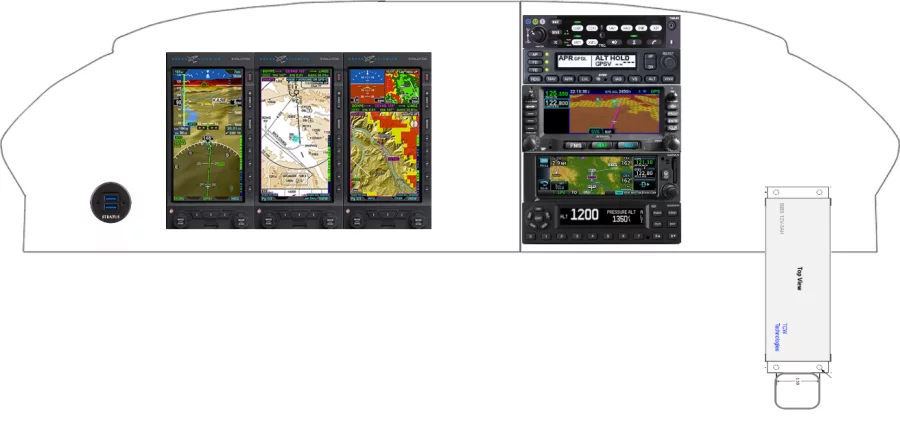

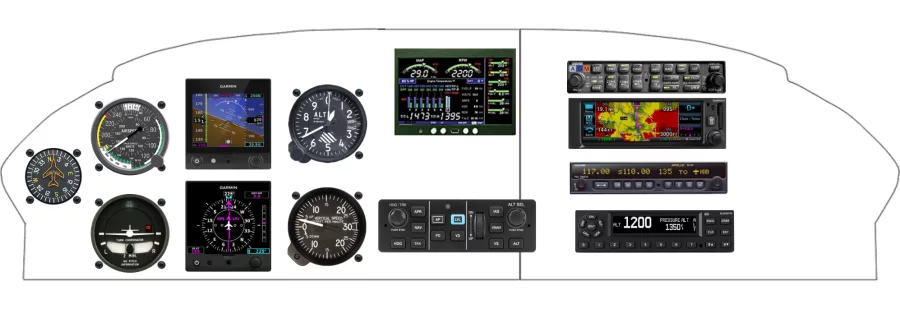

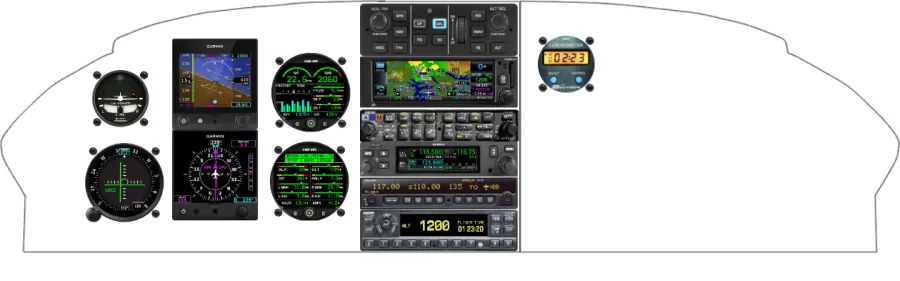

Recent PA-32 panel designs
Exported by builders from the Panel Designer, newest first.
What builders put in a PA-32 panel
The equipment placed most often across the 96 designs on this template. Counts, never names.
| Equipment | Designs | Share |
|---|---|---|
| Garmin International, Inc G5 | 27 | 28% |
| Garmin International, Inc GFC 500 | 17 | 18% |
| Garmin International, Inc GTX 345 | 17 | 18% |
| Falcon Gauge Airspeed Indicator 3" | 16 | 17% |
| Garmin International, Inc G3X Touch | 15 | 16% |
| Falcon Gauge Vertical Speed Indicator | 14 | 15% |
| Garmin International, Inc GTN 650Xi | 11 | 11% |
| Falcon Gauge Altimeter 3" | 10 | 10% |
Other Piper Aircraft panels
From layout to fabricated panel
Lay out the PA-32 panel in the Panel Designer, then send it to our shop for CAD, Cut, Paint & Label.
