Piper Aircraft PA-23 instrument panel
The PA-23 panel template at the panel's dimensions, 48.66 × 24.34 inches. Lay out your instruments and avionics on it to scale, export the picture and the equipment list, or send it to our shop for CAD, Cut, Paint & Label.
69 panels laid out on this template
Also written PA23 or PA 23.

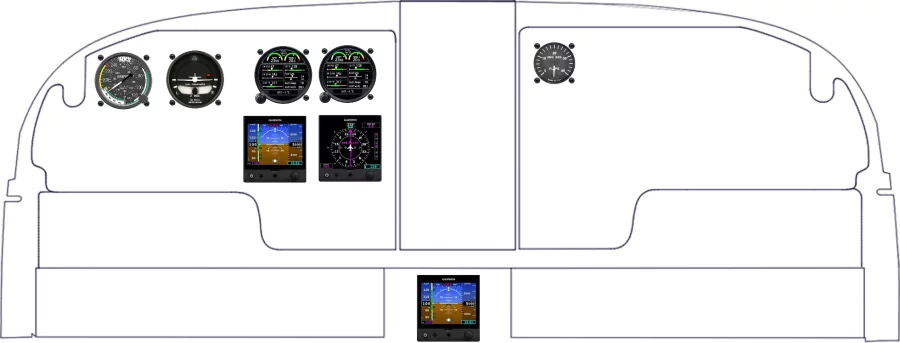

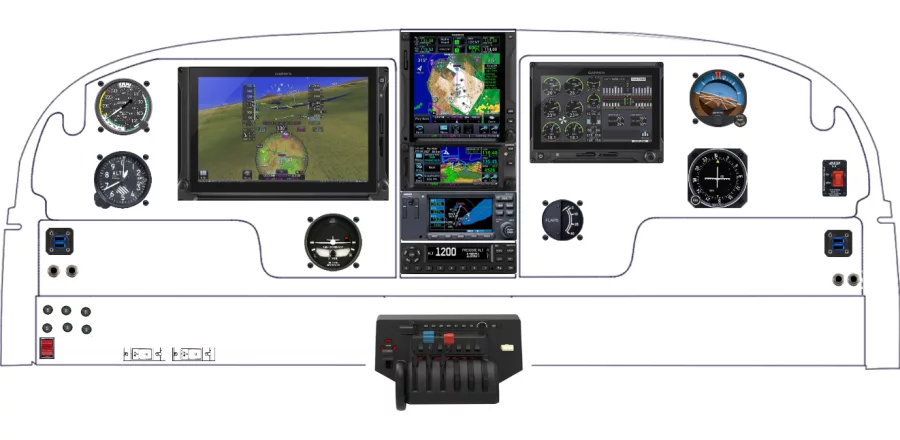

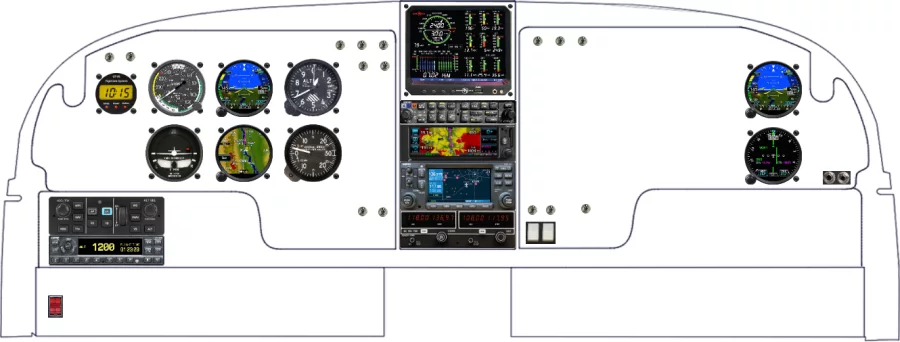

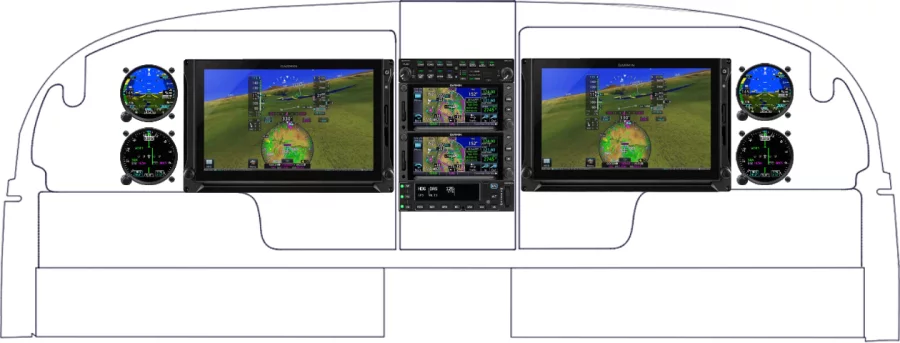

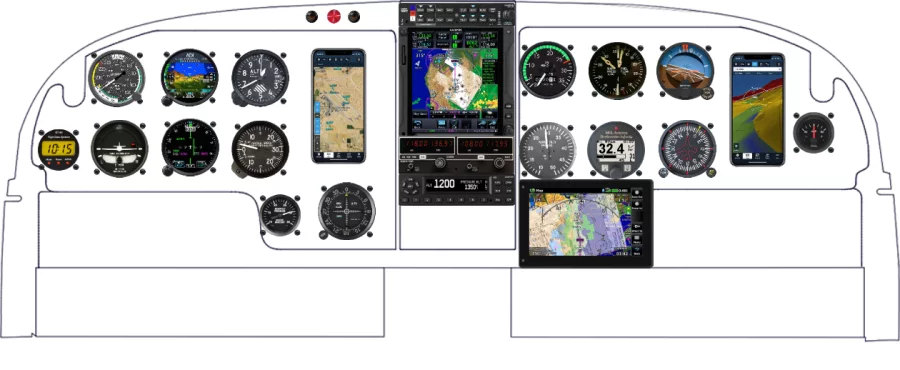

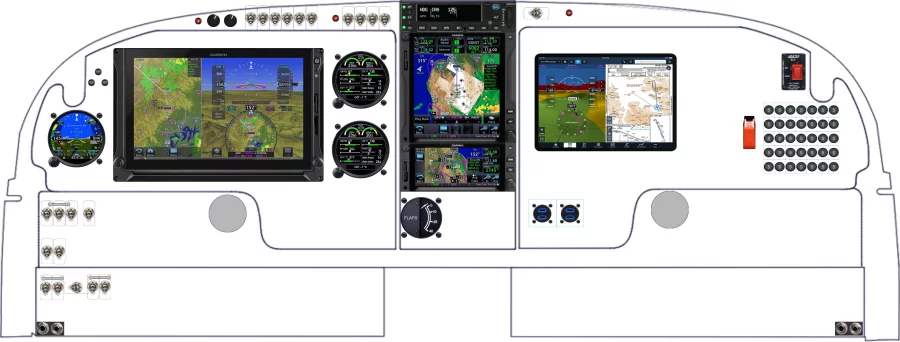

Recent PA-23 panel designs
Exported by builders from the Panel Designer, newest first.
What builders put in a PA-23 panel
The equipment placed most often across the 69 designs on this template. Counts, never names.
| Equipment | Designs | Share |
|---|---|---|
| Garmin International, Inc GTN 750Xi | 42 | 61% |
| UMA Instruments N092 Flap Position | 39 | 57% |
| Garmin International, Inc GTX 345 | 38 | 55% |
| Falcon Gauge Airspeed Indicator 3" | 36 | 52% |
| Falcon Gauge Altimeter 3" | 33 | 48% |
| Falcon Gauge Vertical Speed Indicator | 32 | 46% |
| Garmin International, Inc GSB 15 | 27 | 39% |
| UMA Instruments Manifold Pressure Gauge | 23 | 33% |
Other Piper Aircraft panels
From layout to fabricated panel
Lay out the PA-23 panel in the Panel Designer, then send it to our shop for CAD, Cut, Paint & Label.
