Piper Aircraft PA-28 instrument panel
The PA-28 panel template at the panel's dimensions, 42.2 × 17.2 inches. Lay out your instruments and avionics on it to scale, export the picture and the equipment list, or send it to our shop for CAD, Cut, Paint & Label.
739 panels laid out on this template
Also written PA28 or PA 28.

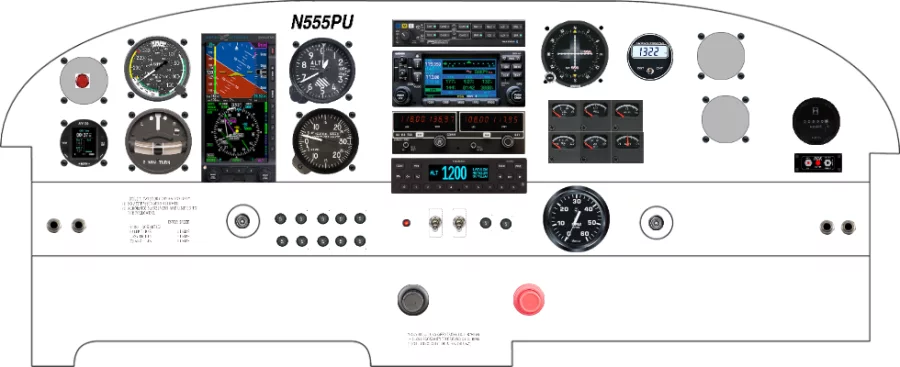

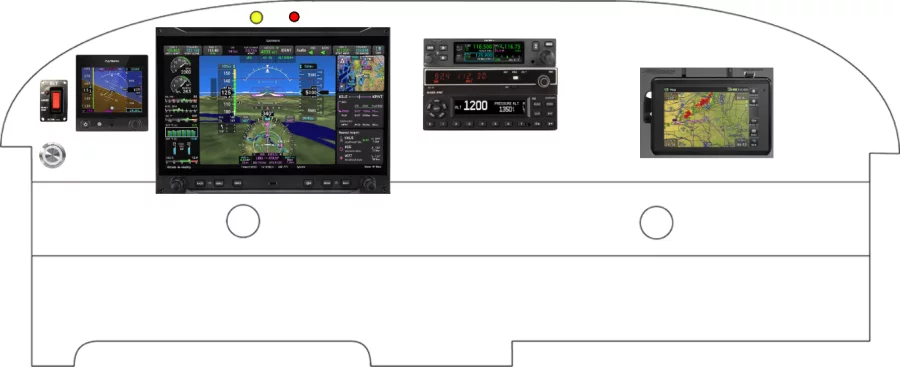

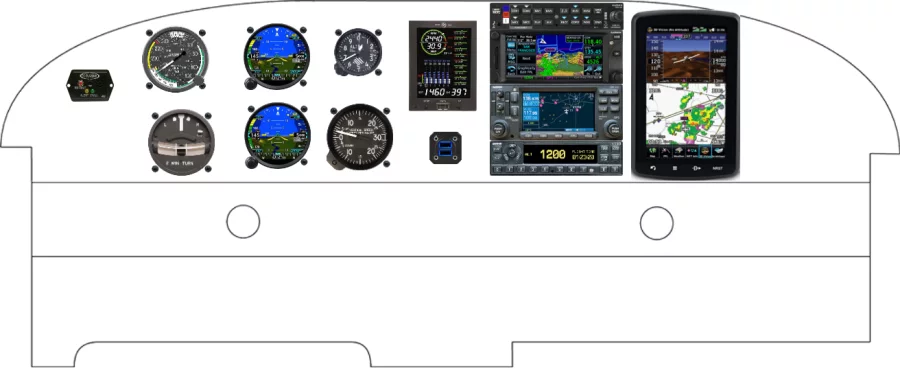

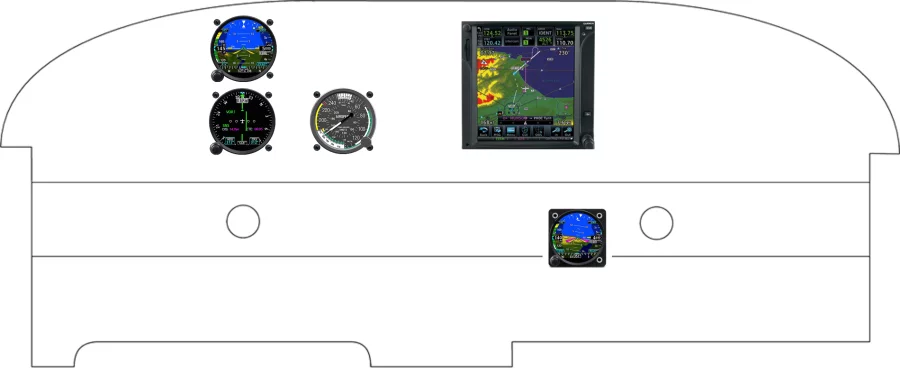

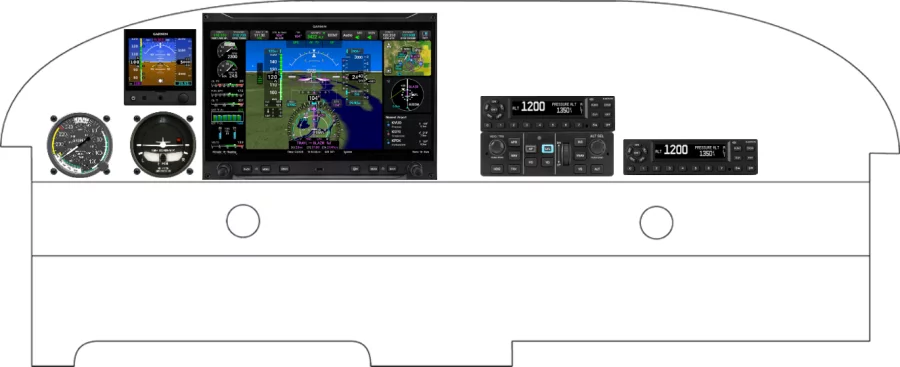

Recent PA-28 panel designs
Exported by builders from the Panel Designer, newest first.
What builders put in a PA-28 panel
The equipment placed most often across the 739 designs on this template. Counts, never names.
| Equipment | Designs | Share |
|---|---|---|
| Falcon Gauge Vertical Speed Indicator | 237 | 32% |
| Falcon Gauge Altimeter 3" | 231 | 31% |
| Falcon Gauge Airspeed Indicator 3" | 229 | 31% |
| Garmin International, Inc G5 | 211 | 29% |
| Garmin International, Inc GFC 500 | 167 | 23% |
| Sensa Technologies 7277 | 129 | 17% |
| Garmin International, Inc G3X Touch | 112 | 15% |
| Mid Continent MD93 Digital Clock | 107 | 14% |
Other Piper Aircraft panels
From layout to fabricated panel
Lay out the PA-28 panel in the Panel Designer, then send it to our shop for CAD, Cut, Paint & Label.
