Piper Aircraft PA-24 instrument panel
The PA-24 panel template at the panel's dimensions, 44.49 × 17.13 inches. Lay out your instruments and avionics on it to scale, export the picture and the equipment list, or send it to our shop for CAD, Cut, Paint & Label.
161 panels laid out on this template
Also written PA24 or PA 24.

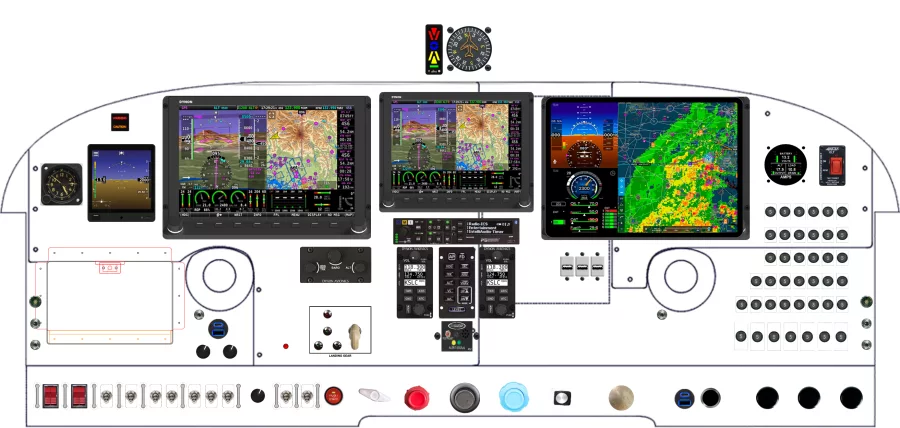

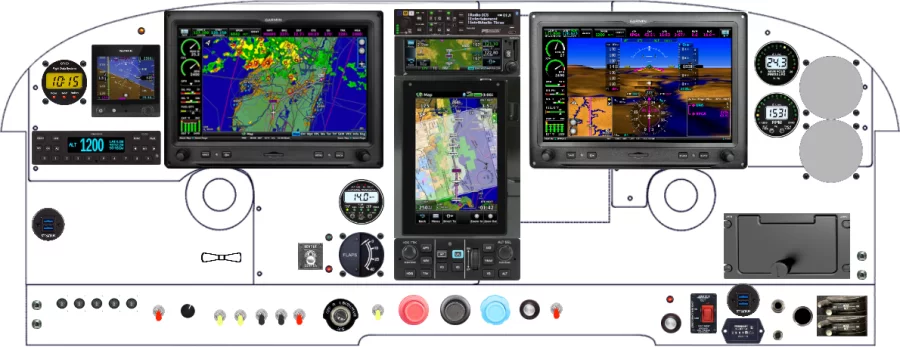

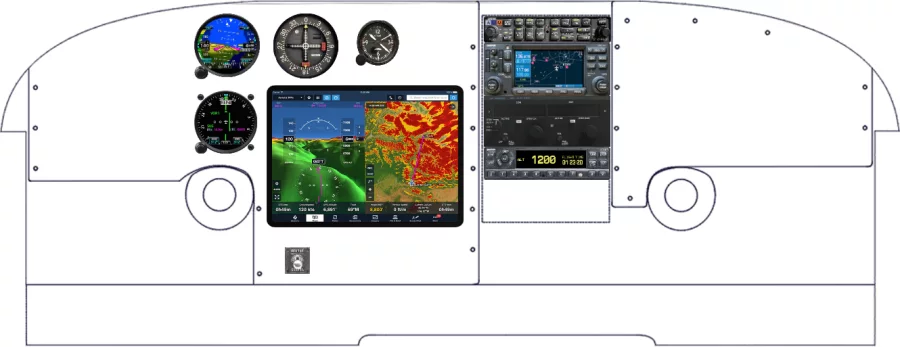

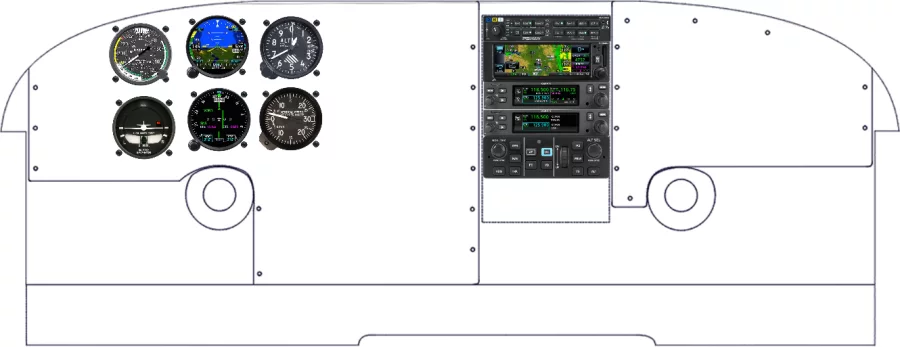

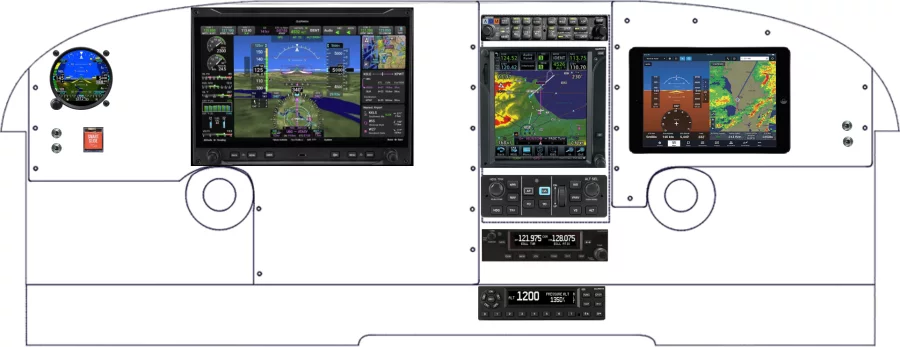

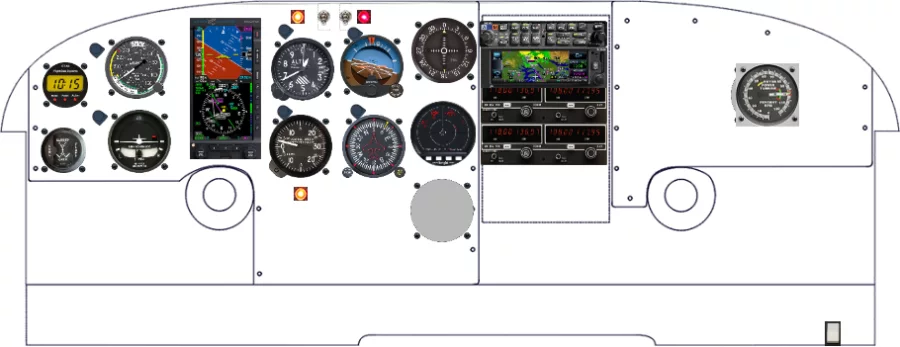

Recent PA-24 panel designs
Exported by builders from the Panel Designer, newest first.
PA-24 for sale
Selling a PA-24? List it on the Hangar Flying Marketplace, where builders and owners look.
What builders put in a PA-24 panel
The equipment placed most often across the 161 designs on this template. Counts, never names.
| Equipment | Designs | Share |
|---|---|---|
| Garmin International, Inc G5 | 51 | 32% |
| Falcon Gauge Airspeed Indicator 3" | 50 | 31% |
| UMA Instruments N092 Flap Position | 48 | 30% |
| Falcon Gauge Altimeter 3" | 48 | 30% |
| Falcon Gauge Vertical Speed Indicator | 43 | 27% |
| Garmin International, Inc GFC 500 | 42 | 26% |
| Sensa Technologies 7277 | 34 | 21% |
| Garmin International, Inc GTX 345 | 32 | 20% |
Other Piper Aircraft panels
From layout to fabricated panel
Lay out the PA-24 panel in the Panel Designer, then send it to our shop for CAD, Cut, Paint & Label.
