The RV-12 panel template at the panel's dimensions, 37.79 × 12.28 inches. Lay out your instruments and avionics on it to scale, export the picture and the equipment list, or send it to our shop for CAD, Cut, Paint & Label.
32 panels laid out on this template
Also written RV12 or RV 12.

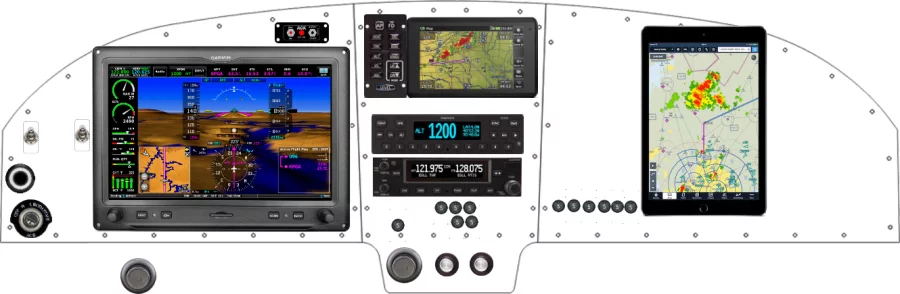

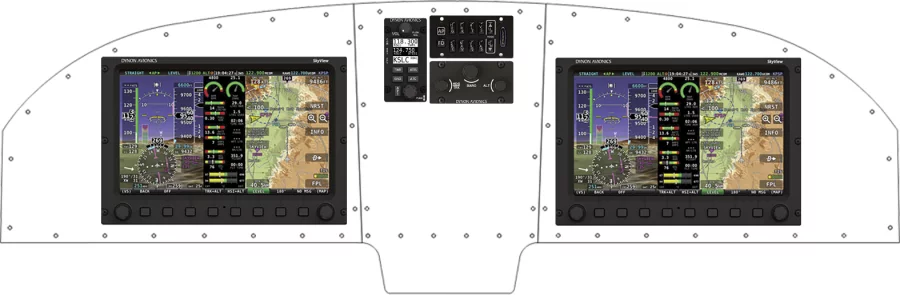

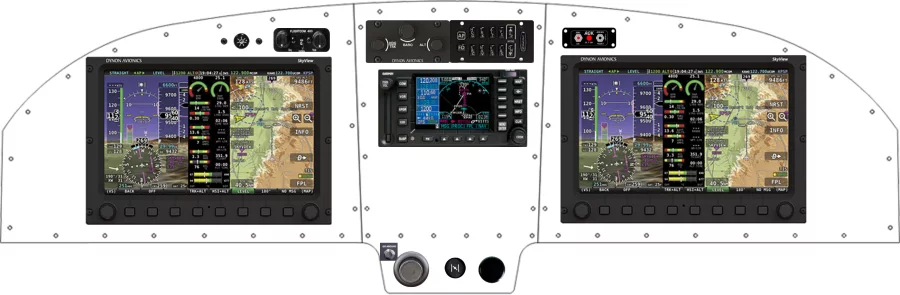

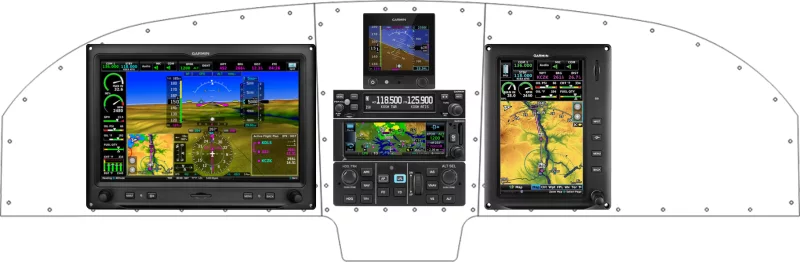

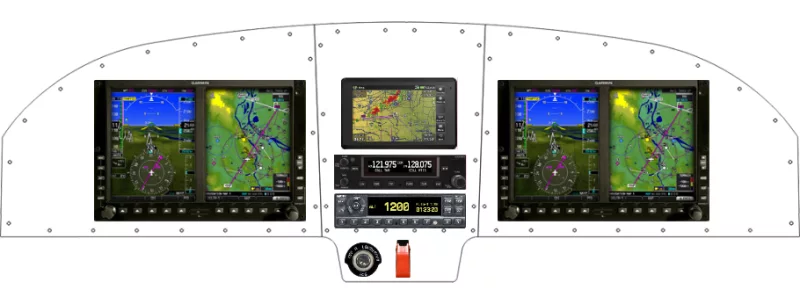

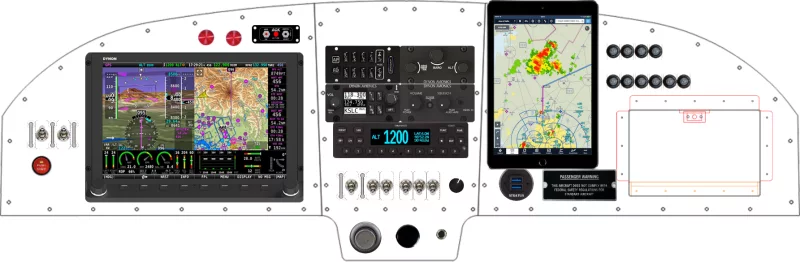

Recent RV-12 panel designs
Exported by builders from the Panel Designer, newest first.
What builders put in an RV-12 panel
The equipment placed most often across the 32 designs on this template. Counts, never names.
| Equipment | Designs | Share |
|---|---|---|
| Dynon Avionics Autopilot Panel | 15 | 47% |
| ACK Technologies ELT | 12 | 38% |
| Garmin International, Inc GTR 200 | 8 | 25% |
| Garmin International, Inc G3X Touch | 6 | 19% |
| Garmin International, Inc GMC 507 | 5 | 16% |
| Dynon Avionics SkyView Touch | 5 | 16% |
| Dynon Avionics VHF COM | 5 | 16% |
| Garmin International, Inc GNC 255 | 5 | 16% |
