Zenith Aircraft Company STOL CH801 instrument panel
The STOL CH801 panel template at the panel's dimensions, 39.92 × 14.2 inches. Lay out your instruments and avionics on it to scale, export the picture and the equipment list, or send it to our shop for CAD, Cut, Paint & Label.
82 panels laid out on this template

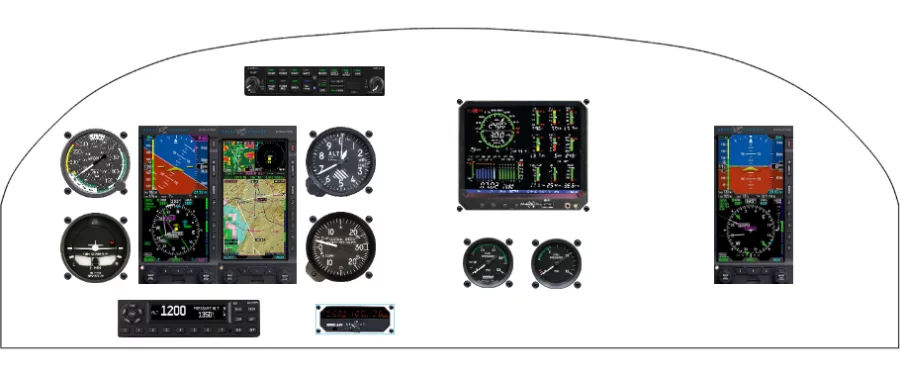

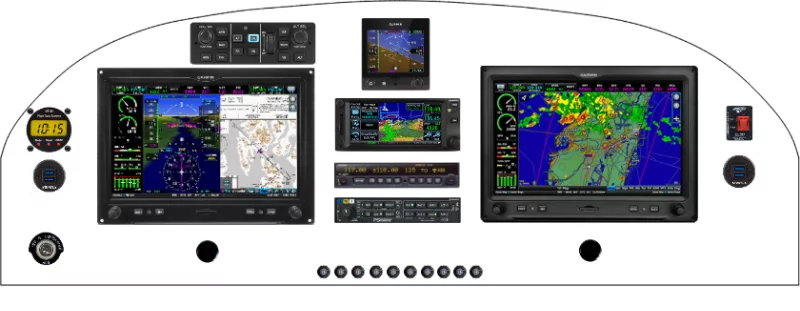

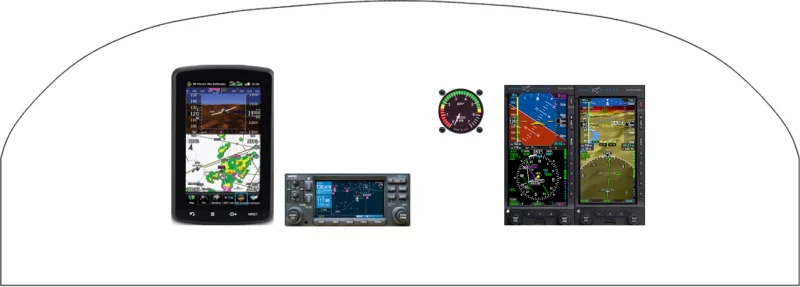

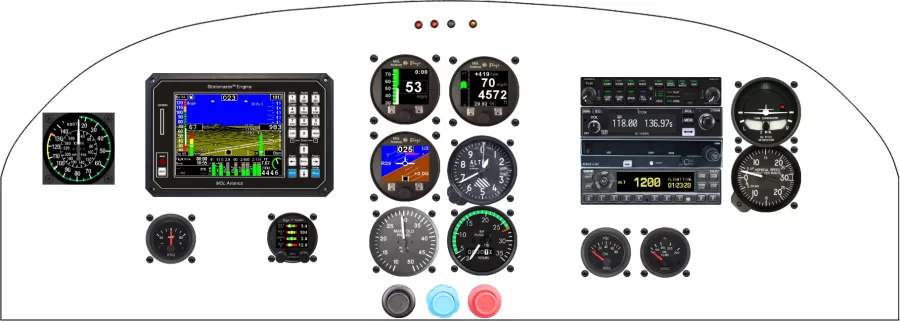

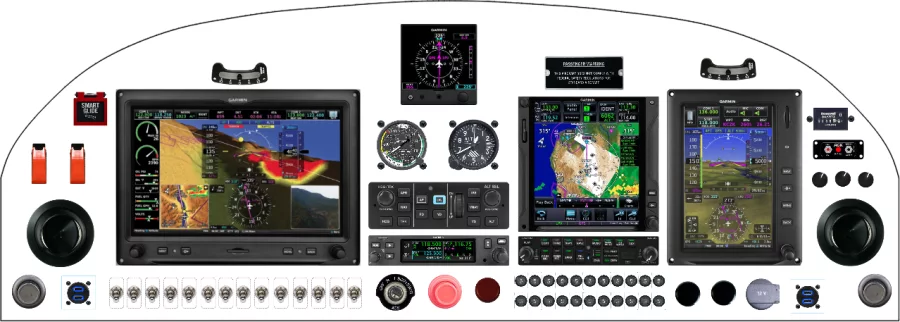

Recent STOL CH801 panel designs
Exported by builders from the Panel Designer, newest first.
What builders put in a STOL CH801 panel
The equipment placed most often across the 82 designs on this template. Counts, never names.
| Equipment | Designs | Share |
|---|---|---|
| Falcon Gauge Altimeter 3" | 27 | 33% |
| Falcon Gauge Airspeed Indicator 3" | 26 | 32% |
| Falcon Gauge Vertical Speed Indicator | 25 | 30% |
| Sensa Technologies 7277 | 18 | 22% |
| Garmin International, Inc GMA 245 | 17 | 21% |
| Garmin International, Inc G5 | 16 | 20% |
| Garmin International, Inc G3X Touch | 15 | 18% |
| Attitude Indicator | 13 | 16% |
Other Zenith Aircraft Company panels
From layout to fabricated panel
Lay out the STOL CH801 panel in the Panel Designer, then send it to our shop for CAD, Cut, Paint & Label.
