Zenith Aircraft Company 601 HD/S instrument panel

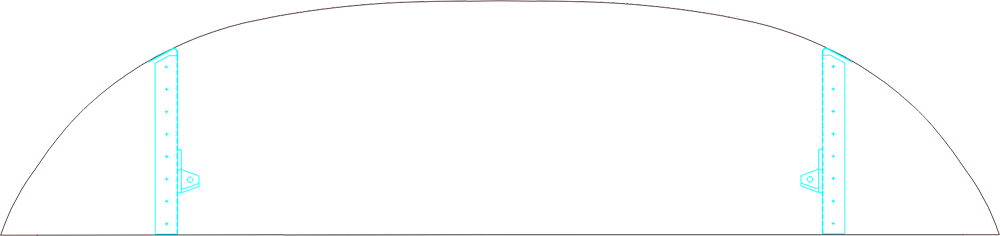

The 601 HD/S panel template at the panel's dimensions, 38.78 × 9.13 inches. Lay out your instruments and avionics on it to scale, export the picture and the equipment list, or send it to our shop for CAD, Cut, Paint & Label.
24 panels laid out on these 2 templates
2 templates for the 601 HD/S

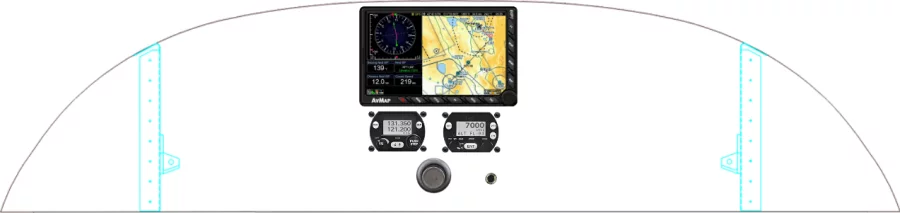

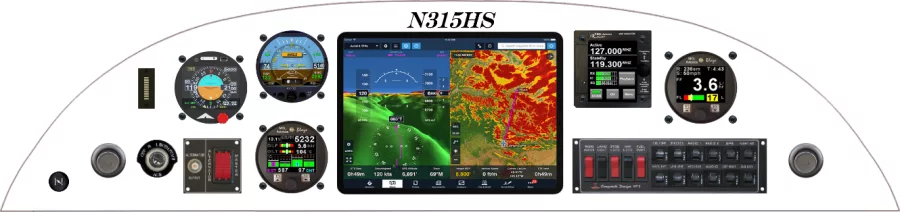

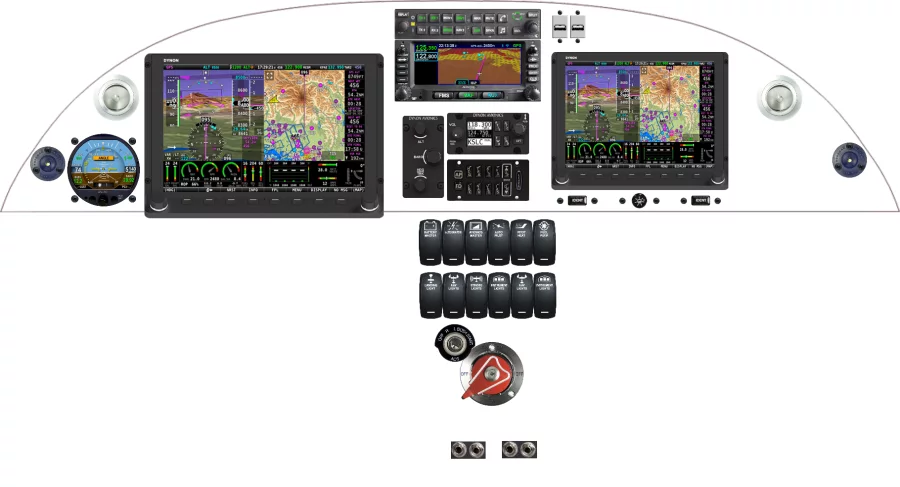

Recent 601 HD/S panel designs
Exported by builders from the Panel Designer, newest first.
What builders put in a 601 HD/S panel
The equipment placed most often across the 24 designs on this template. Counts, never names.
| Equipment | Designs | Share |
|---|---|---|
| uAvionix Corporation AV-30 PFD | 7 | 29% |
| Dynon Avionics Dynon SkyView HDX 8" | 6 | 25% |
| Dynon Avionics VHF COM | 6 | 25% |
| Dynon Avionics Dimmer Module | 5 | 21% |
| The Ray Allen Company Trim Indicator | 5 | 21% |
| Dynon Avionics Autopilot Panel | 5 | 21% |
| Avidyne IFD440 | 5 | 21% |
| Avidyne AMX240 | 5 | 21% |
Other Zenith Aircraft Company panels
From layout to fabricated panel
Lay out the 601 HD/S panel in the Panel Designer, then send it to our shop for CAD, Cut, Paint & Label.
