Velocity Aircraft Velocity instrument panel
The Velocity panel template at the panel's dimensions, 47.5 × 14.47 inches. Lay out your instruments and avionics on it to scale, export the picture and the equipment list, or send it to our shop for CAD, Cut, Paint & Label.
256 panels laid out on these 4 templates
4 templates for the Velocity

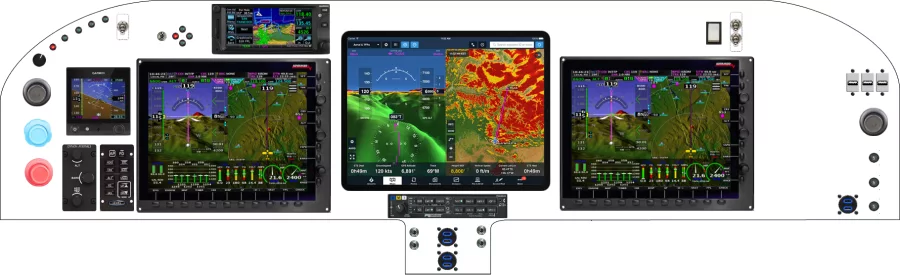

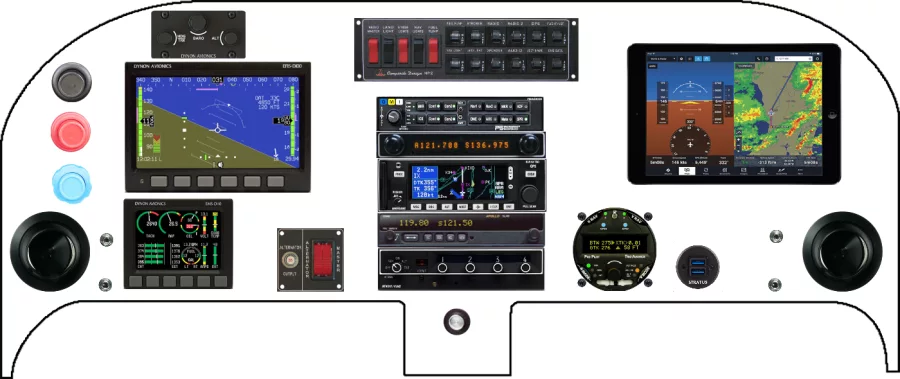

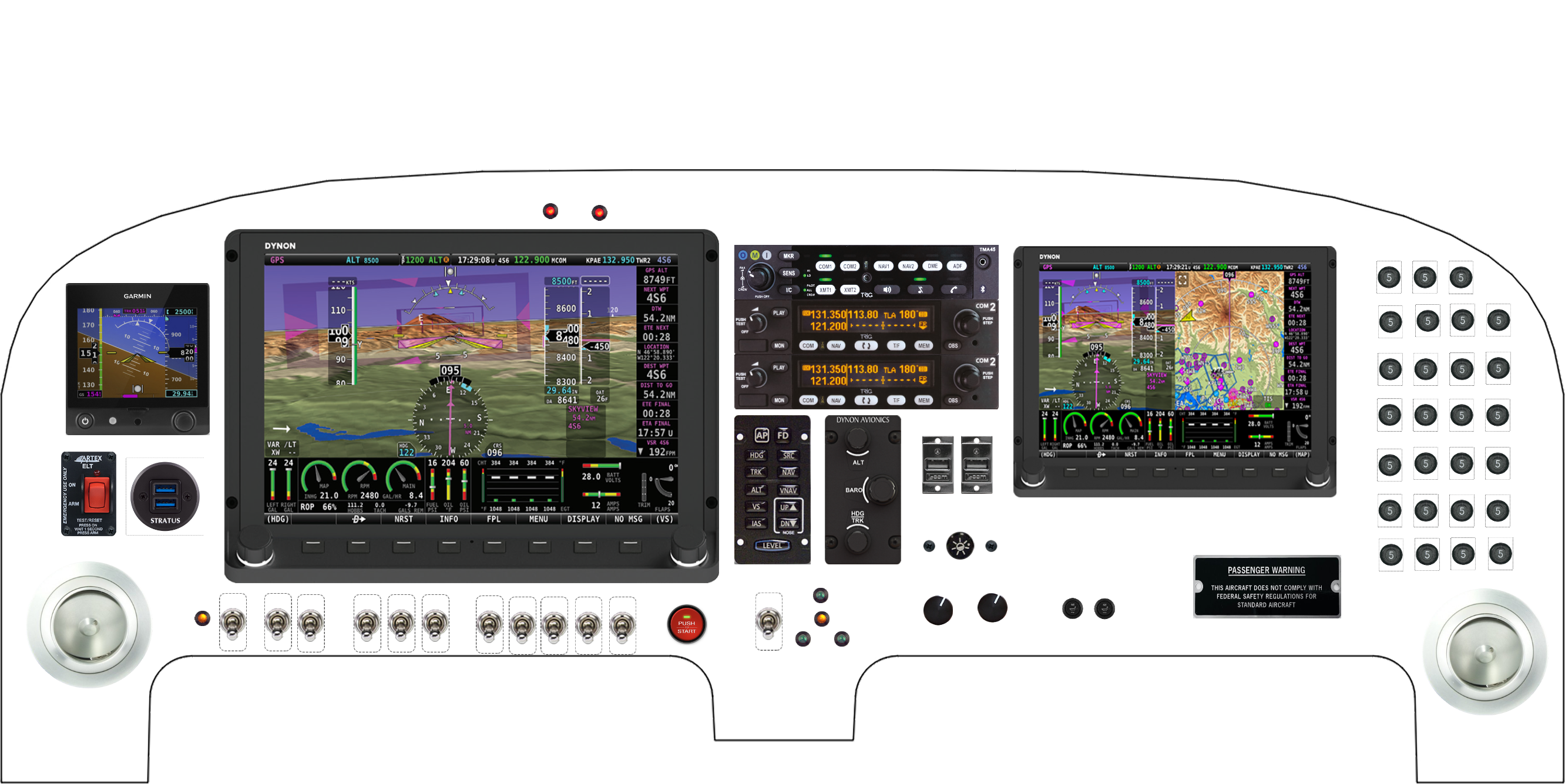

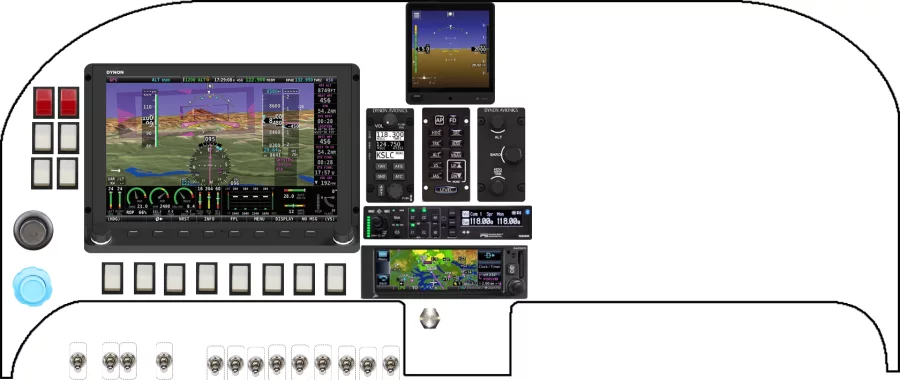

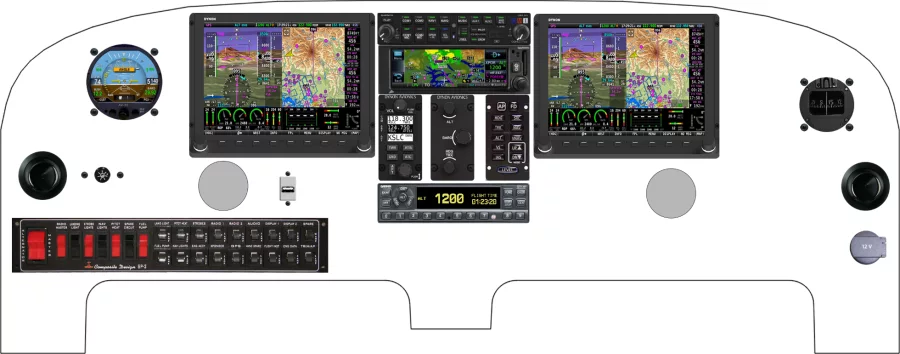

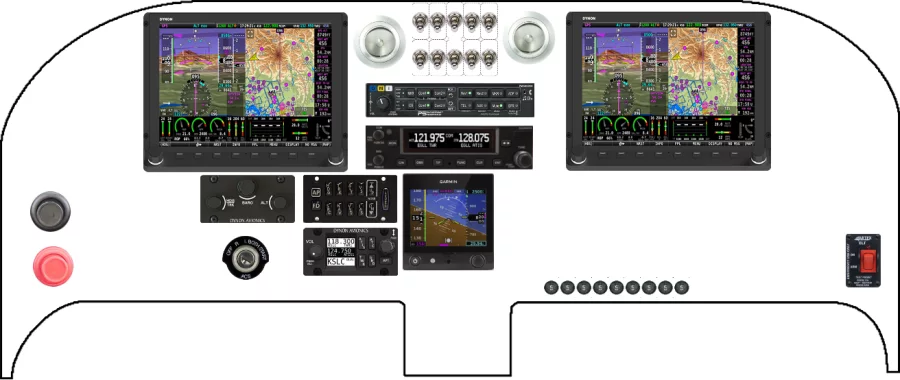

Recent Velocity panel designs
Exported by builders from the Panel Designer, newest first.
What builders put in a Velocity panel
The equipment placed most often across the 256 designs on this template. Counts, never names.
| Equipment | Designs | Share |
|---|---|---|
| Garmin International, Inc G5 | 102 | 40% |
| Garmin International, Inc G3X Touch | 98 | 38% |
| Sensa Technologies 7277 | 64 | 25% |
| Garmin International, Inc GMC 507 | 63 | 25% |
| Dynon Avionics Autopilot Panel | 62 | 24% |
| Garmin International, Inc GMA 245 | 49 | 19% |
| Dynon Avionics VHF COM | 48 | 19% |
| Garmin International, Inc GNC 255 | 41 | 16% |
From layout to fabricated panel
Lay out the Velocity panel in the Panel Designer, then send it to our shop for CAD, Cut, Paint & Label.
