Grumman Aviation AA-5 instrument panel
The AA-5 panel template at the panel's dimensions, 41.25 × 14.5 inches. Lay out your instruments and avionics on it to scale, export the picture and the equipment list, or send it to our shop for CAD, Cut, Paint & Label.
151 panels laid out on this template
Also written AA5 or AA 5.

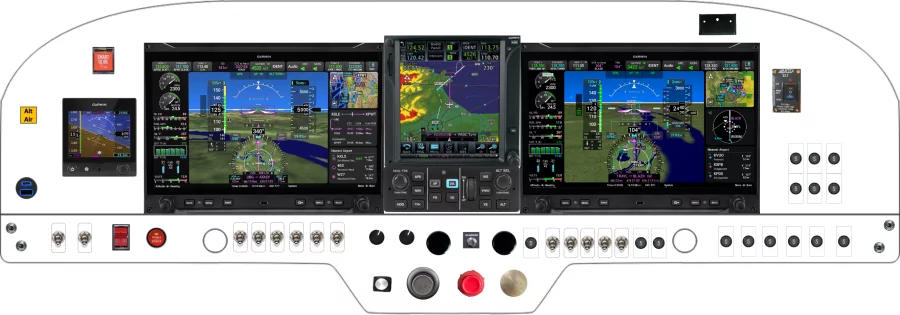

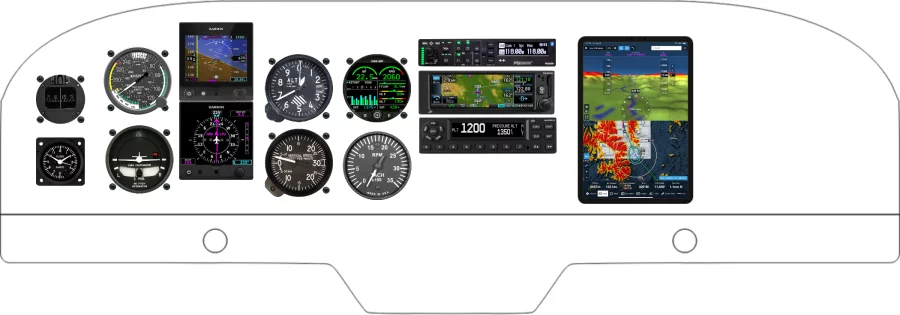

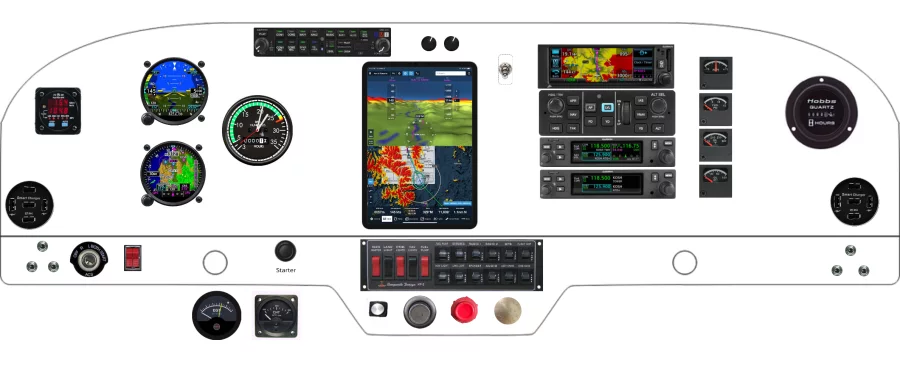

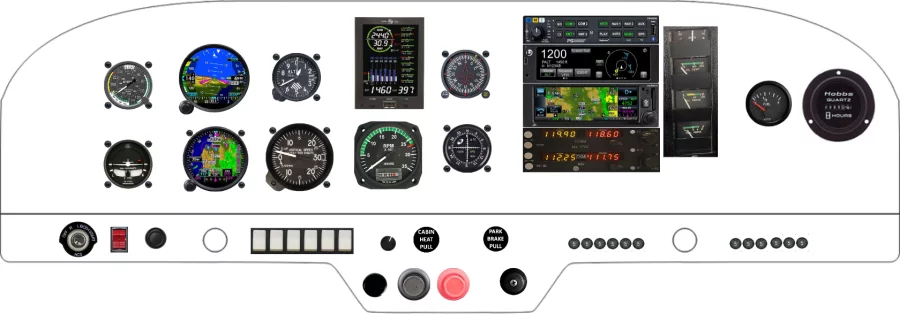

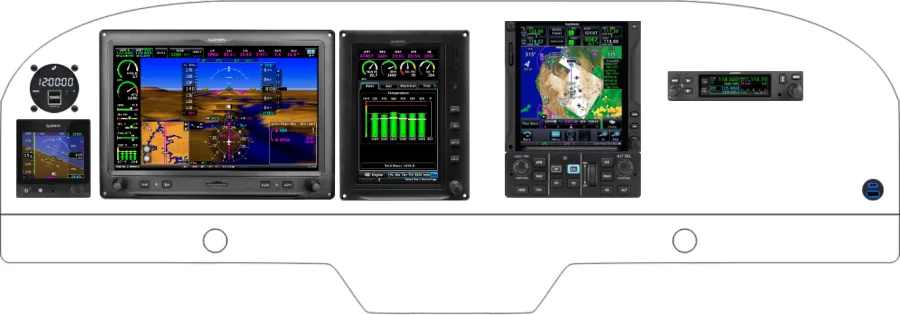

Recent AA-5 panel designs
Exported by builders from the Panel Designer, newest first.
What builders put in an AA-5 panel
The equipment placed most often across the 151 designs on this template. Counts, never names.
| Equipment | Designs | Share |
|---|---|---|
| Falcon Gauge Altimeter 3" | 62 | 41% |
| Falcon Gauge Vertical Speed Indicator | 61 | 40% |
| Falcon Gauge Airspeed Indicator 3" | 56 | 37% |
| Sensa Technologies 7277 | 51 | 34% |
| Garmin International, Inc GFC 500 | 47 | 31% |
| Garmin International, Inc G5 | 44 | 29% |
| Garmin International, Inc GSB 15 | 31 | 21% |
| Garmin International, Inc GNC 255 | 29 | 19% |
From layout to fabricated panel
Lay out the AA-5 panel in the Panel Designer, then send it to our shop for CAD, Cut, Paint & Label.
