Cessna 414 instrument panel
The 414 panel template at the panel's dimensions, 52.51 × 26.25 inches. Lay out your instruments and avionics on it to scale, export the picture and the equipment list, or send it to our shop for CAD, Cut, Paint & Label.
31 panels laid out on this template

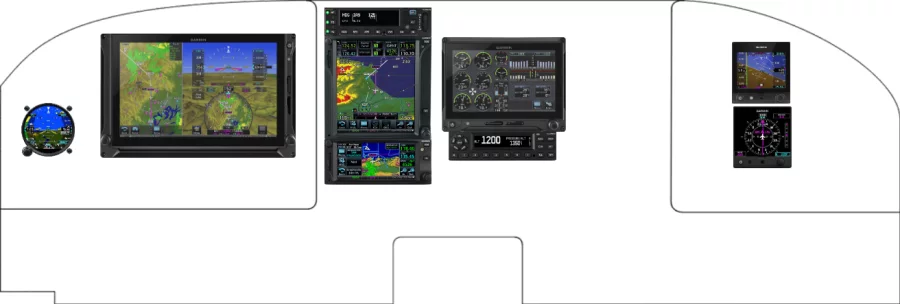

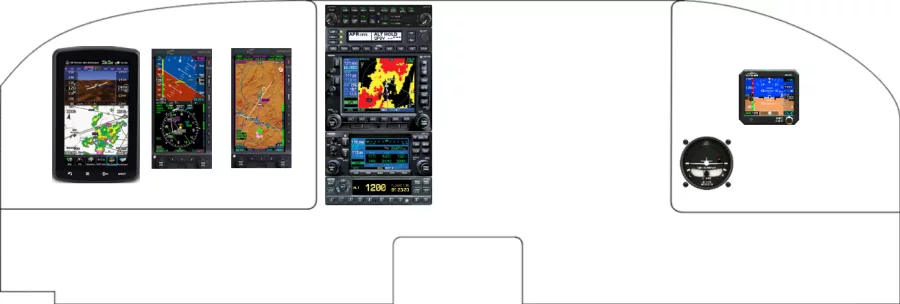

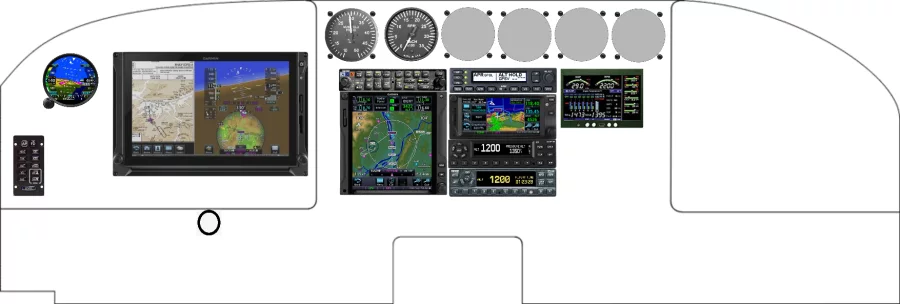

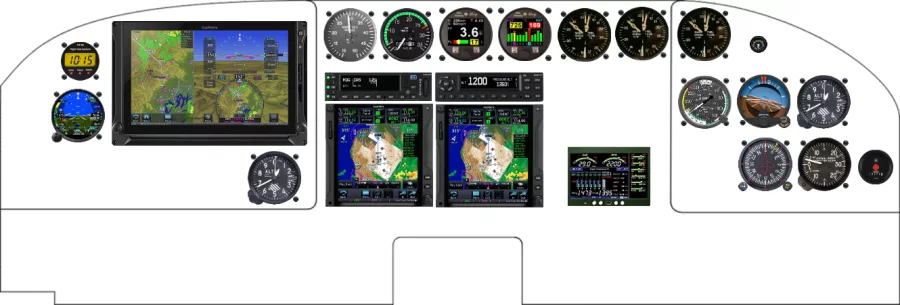

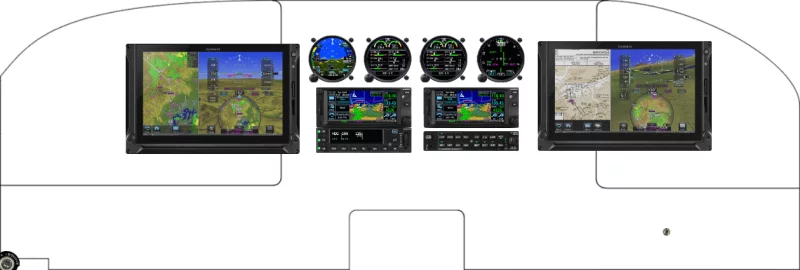

Recent 414 panel designs
Exported by builders from the Panel Designer, newest first.
414 for sale
Selling a 414? List it on the Hangar Flying Marketplace, where builders and owners look.
What builders put in a 414 panel
The equipment placed most often across the 31 designs on this template. Counts, never names.
| Equipment | Designs | Share |
|---|---|---|
| Garmin International, Inc GTN 750Xi | 14 | 45% |
| Garmin International, Inc GMA 340 | 9 | 29% |
| Garmin International, Inc GFC 600 | 9 | 29% |
| Garmin International, Inc GTX 345 | 9 | 29% |
| Garmin International, Inc GI 275 ADI | 7 | 23% |
| Attitude Indicator | 6 | 19% |
| Falcon Gauge Altimeter 3" | 6 | 19% |
| Falcon Gauge Vertical Speed Indicator | 6 | 19% |
Other Cessna panels
From layout to fabricated panel
Lay out the 414 panel in the Panel Designer, then send it to our shop for CAD, Cut, Paint & Label.
