Cessna 182J instrument panel
The 182J panel template at the panel's dimensions, 44.27 × 17.27 inches. Lay out your instruments and avionics on it to scale, export the picture and the equipment list, or send it to our shop for CAD, Cut, Paint & Label.
54 panels laid out on this template

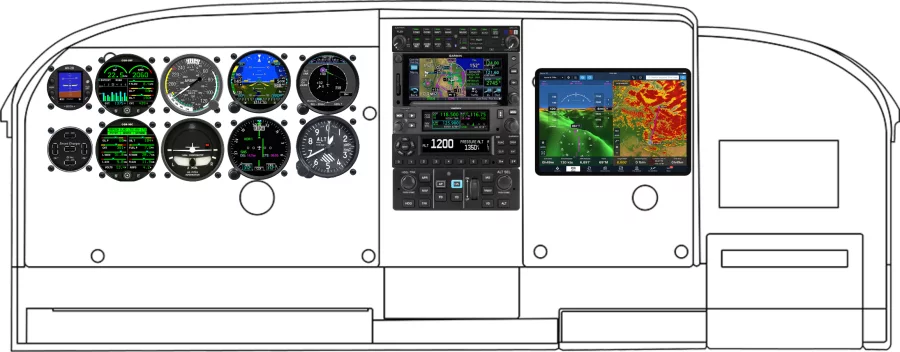

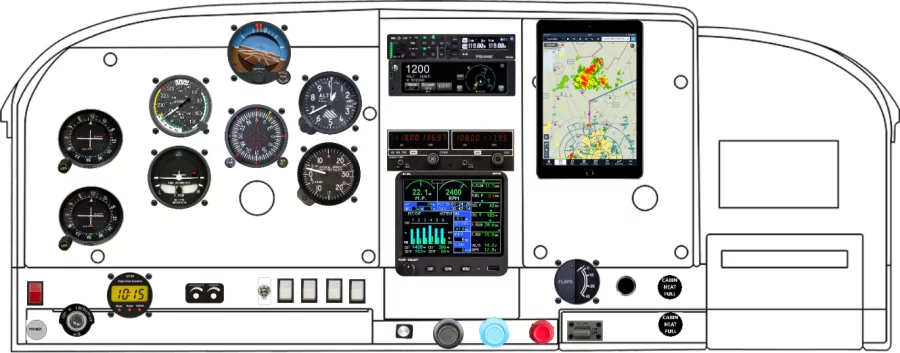

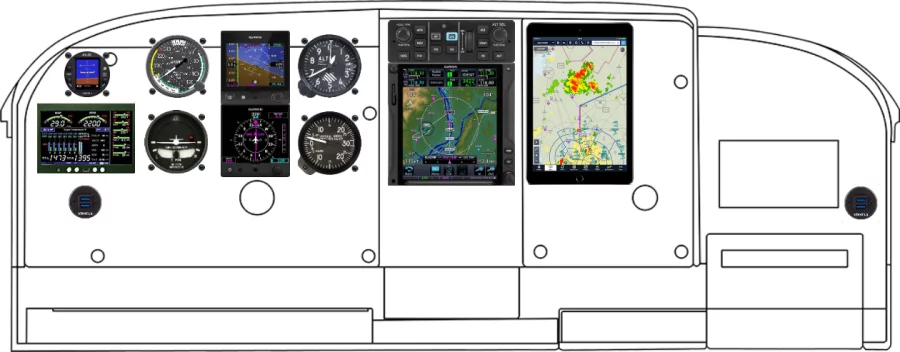

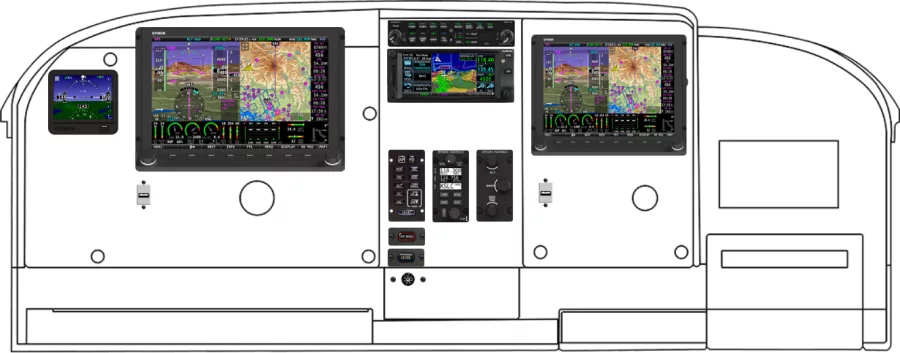

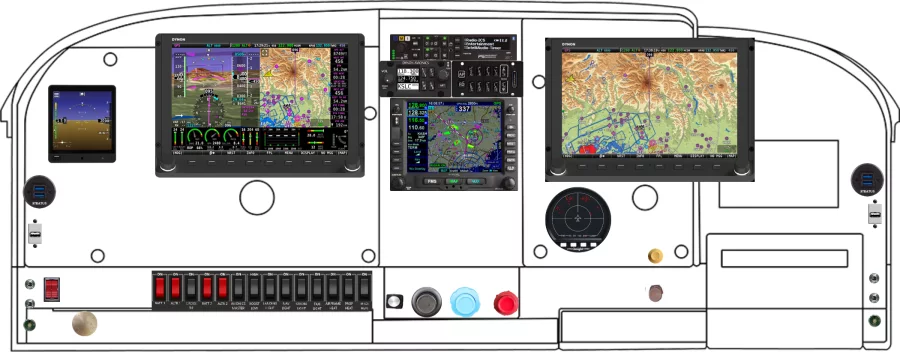

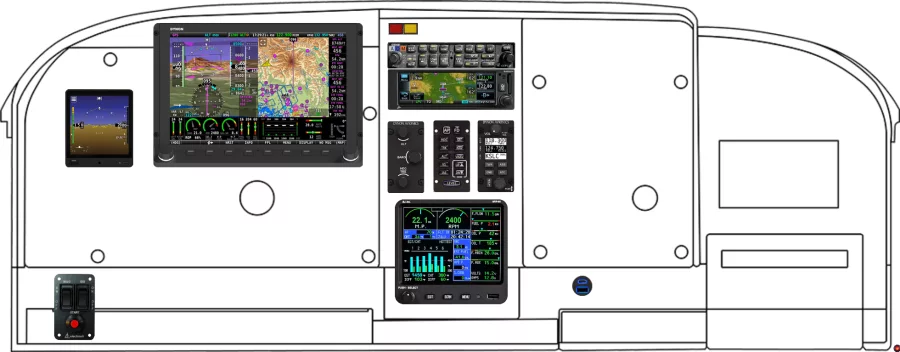

Recent 182J panel designs
Exported by builders from the Panel Designer, newest first.
182J for sale
Selling a 182J? List it on the Hangar Flying Marketplace, where builders and owners look.
What builders put in a 182J panel
The equipment placed most often across the 54 designs on this template. Counts, never names.
| Equipment | Designs | Share |
|---|---|---|
| Falcon Gauge Airspeed Indicator 3" | 16 | 30% |
| Dynon Avionics Autopilot Panel | 13 | 24% |
| Dynon Avionics Dynon SkyView HDX 10" | 12 | 22% |
| Dynon Avionics D30 | 11 | 20% |
| Garmin International, Inc G5 | 10 | 19% |
| Garmin International, Inc GI 275 ADI | 10 | 19% |
| Falcon Gauge Altimeter 3" | 10 | 19% |
| Dynon Avionics VHF COM | 10 | 19% |
Other Cessna panels
From layout to fabricated panel
Lay out the 182J panel in the Panel Designer, then send it to our shop for CAD, Cut, Paint & Label.
