Cessna 172A instrument panel
The 172A panel template at the panel's dimensions, 44.96 × 22.48 inches. Lay out your instruments and avionics on it to scale, export the picture and the equipment list, or send it to our shop for CAD, Cut, Paint & Label.
57 panels laid out on this template

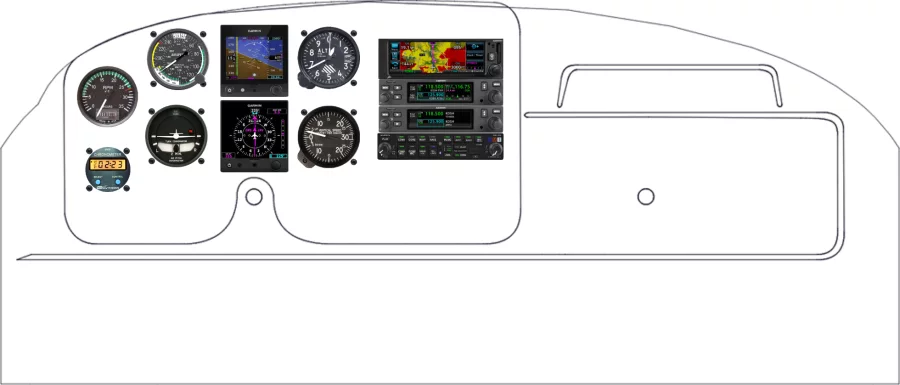

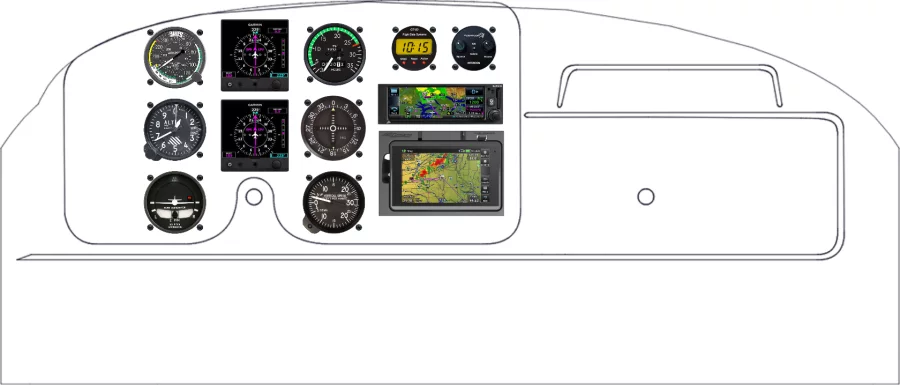

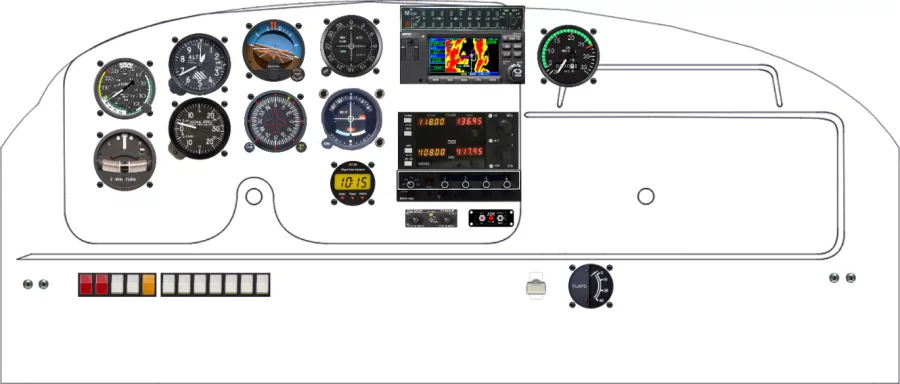

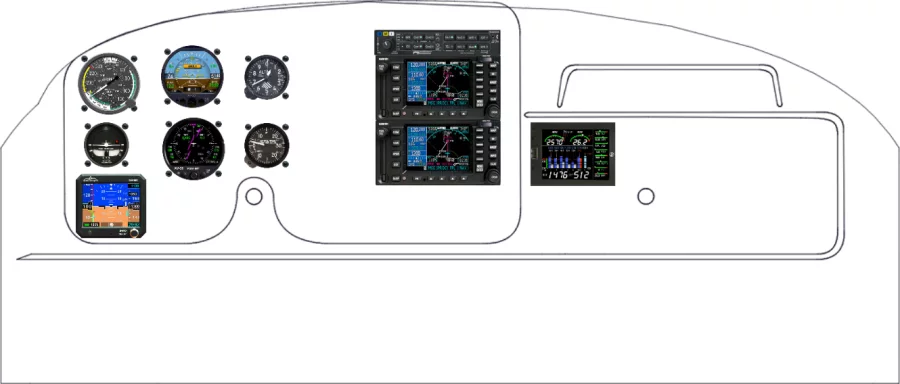

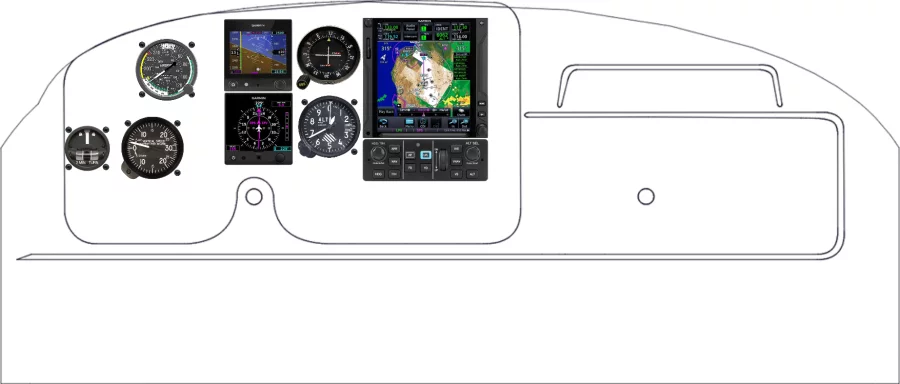

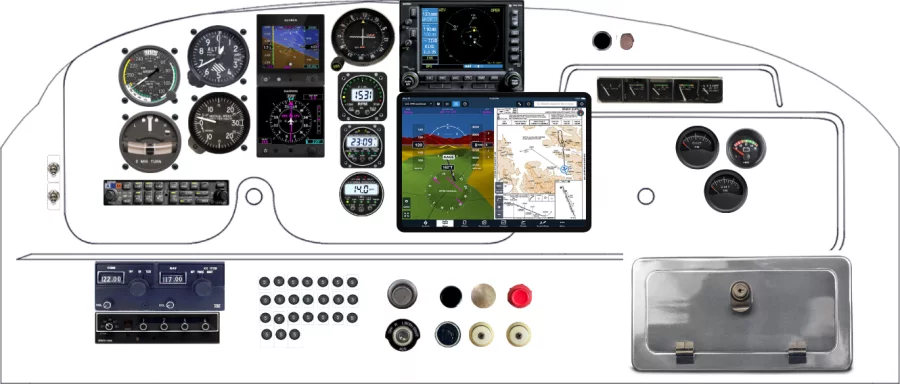

Recent 172A panel designs
Exported by builders from the Panel Designer, newest first.
What builders put in a 172A panel
The equipment placed most often across the 57 designs on this template. Counts, never names.
| Equipment | Designs | Share |
|---|---|---|
| Falcon Gauge Airspeed Indicator 3" | 36 | 63% |
| Falcon Gauge Altimeter 3" | 36 | 63% |
| Falcon Gauge Vertical Speed Indicator | 32 | 56% |
| RC Allen Instruments / Kelly Manufacturing Company Turn & Slip Indicator 3" | 23 | 40% |
| ACK Technologies ELT | 20 | 35% |
| Garmin International, Inc G5 | 17 | 30% |
| Attitude Indicator | 16 | 28% |
| Directional Gyro | 16 | 28% |
Other Cessna panels
From layout to fabricated panel
Lay out the 172A panel in the Panel Designer, then send it to our shop for CAD, Cut, Paint & Label.
