Cessna 150F instrument panel
The 150F panel template at the panel's dimensions, 34.82 × 18.28 inches. Lay out your instruments and avionics on it to scale, export the picture and the equipment list, or send it to our shop for CAD, Cut, Paint & Label.
60 panels laid out on this template

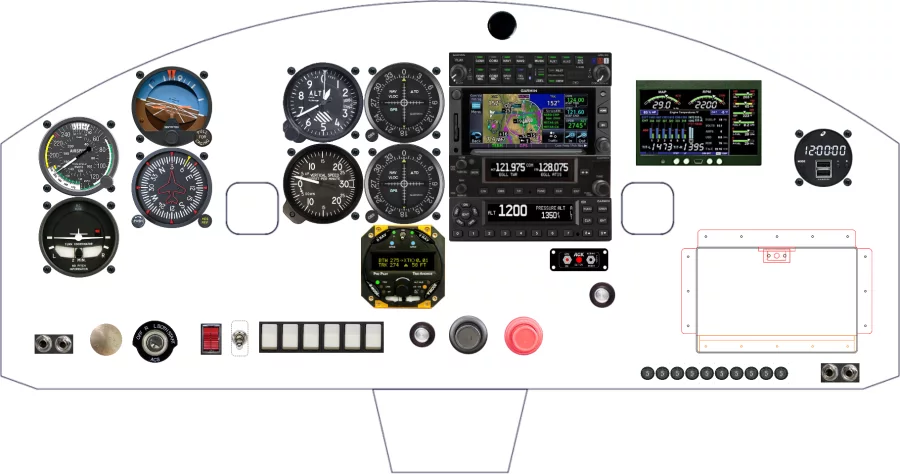

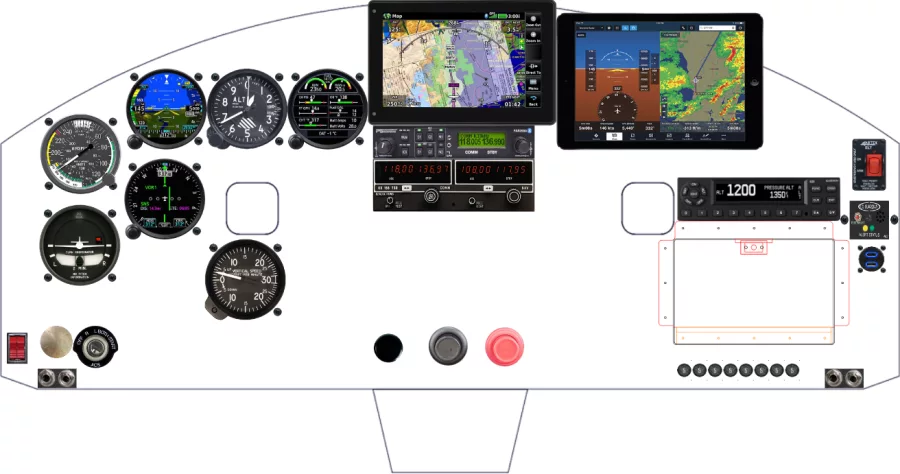

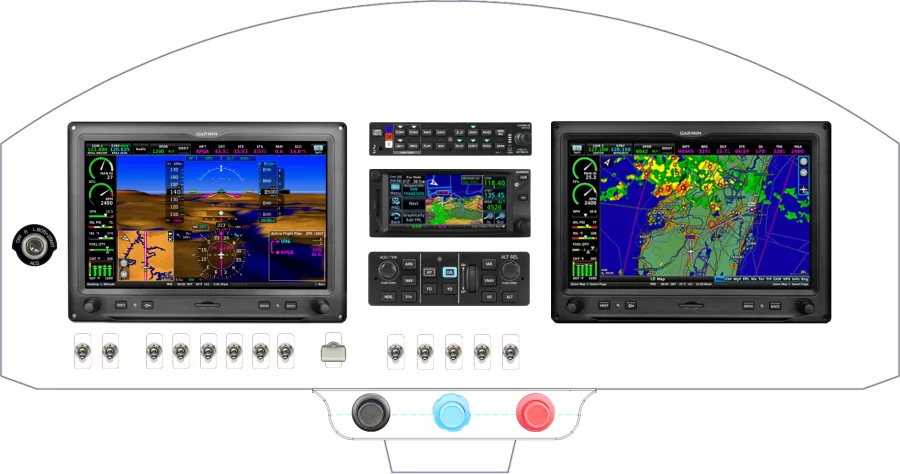

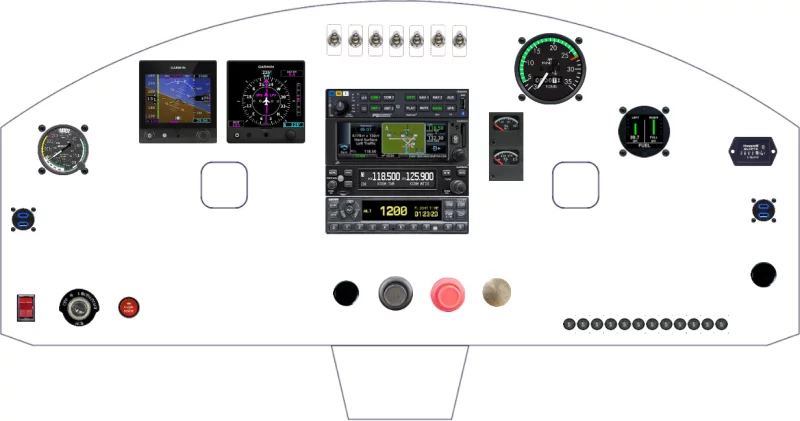

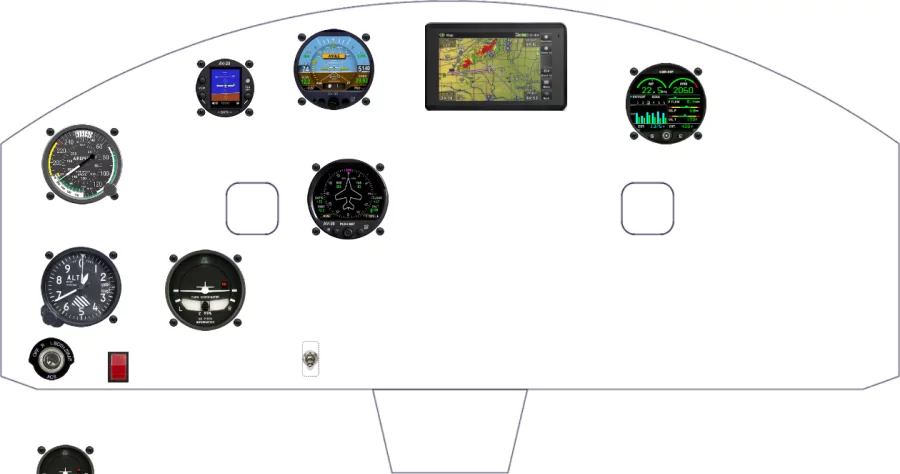

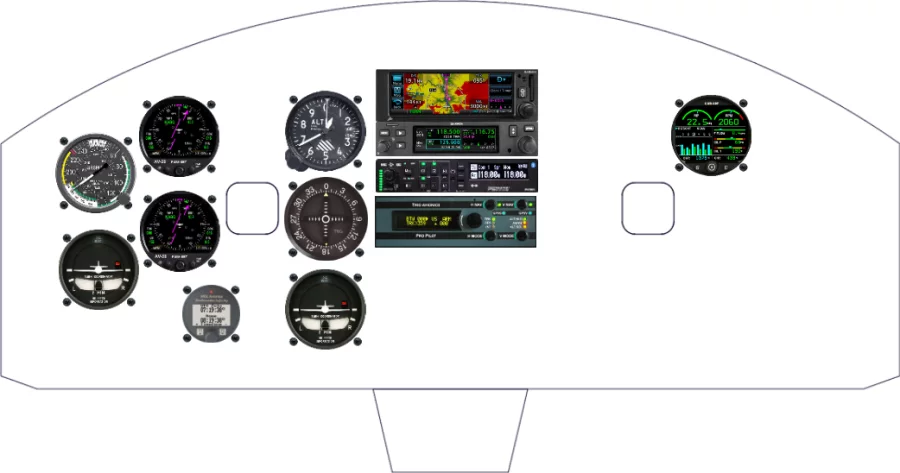

Recent 150F panel designs
Exported by builders from the Panel Designer, newest first.
What builders put in a 150F panel
The equipment placed most often across the 60 designs on this template. Counts, never names.
| Equipment | Designs | Share |
|---|---|---|
| Falcon Gauge Airspeed Indicator 3" | 23 | 38% |
| Falcon Gauge Altimeter 3" | 22 | 37% |
| Falcon Gauge Vertical Speed Indicator | 17 | 28% |
| Garmin International, Inc G5 | 16 | 27% |
| Sensa Technologies 7277 | 14 | 23% |
| Bendix King KX 155 | 12 | 20% |
| Garmin International, Inc GI 275 EIS | 11 | 18% |
| Garmin International, Inc GTX 345 | 11 | 18% |
Other Cessna panels
From layout to fabricated panel
Lay out the 150F panel in the Panel Designer, then send it to our shop for CAD, Cut, Paint & Label.
