Beechcraft Model 35 instrument panel
The Model 35 panel template at the panel's dimensions, 48.14 × 19.11 inches. Lay out your instruments and avionics on it to scale, export the picture and the equipment list, or send it to our shop for CAD, Cut, Paint & Label.
158 panels laid out on these 2 templates
2 templates for the Model 35

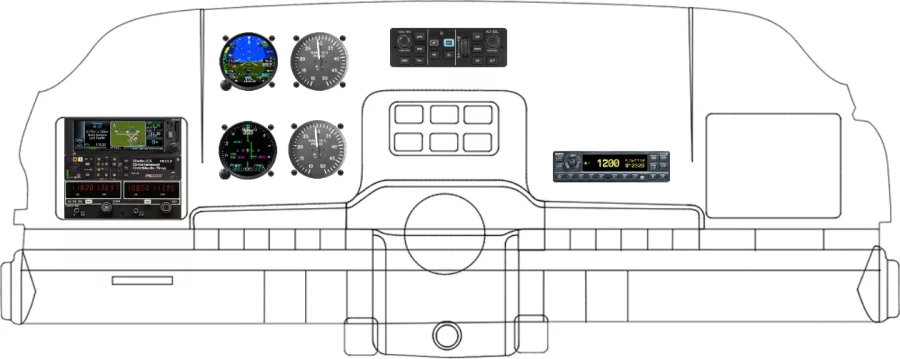

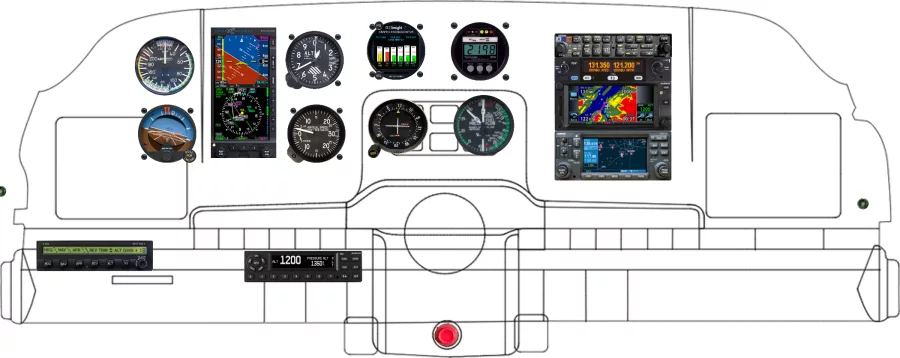

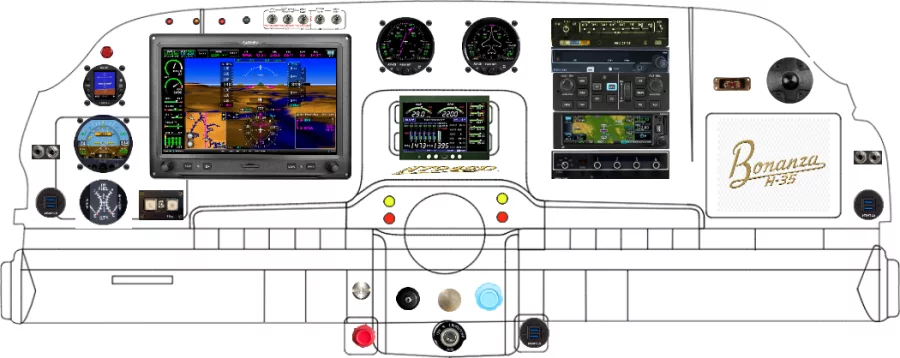

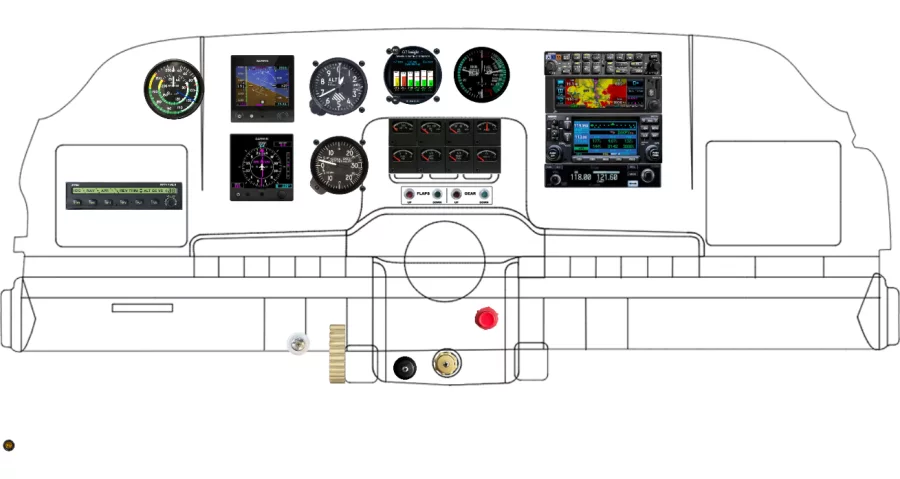

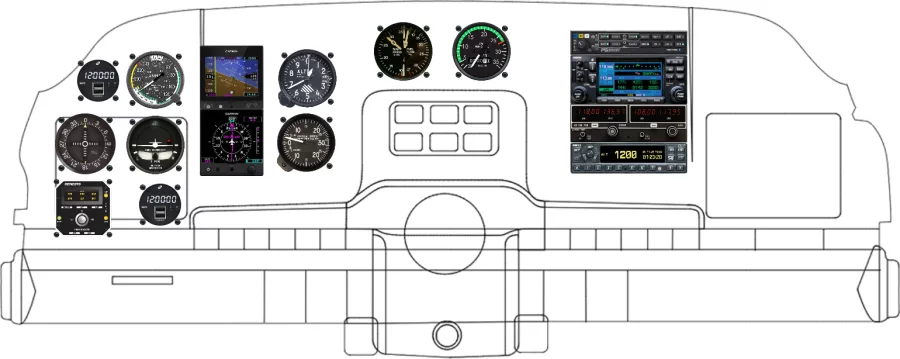

Recent Model 35 panel designs
Exported by builders from the Panel Designer, newest first.
What builders put in a Model 35 panel
The equipment placed most often across the 158 designs on this template. Counts, never names.
| Equipment | Designs | Share |
|---|---|---|
| Falcon Gauge Altimeter 3" | 75 | 47% |
| Falcon Gauge Airspeed Indicator 3" | 72 | 46% |
| Falcon Gauge Vertical Speed Indicator | 62 | 39% |
| Garmin International, Inc G5 | 62 | 39% |
| Garmin International, Inc GFC 500 | 54 | 34% |
| Garmin International, Inc GMA 345 | 40 | 25% |
| Garmin International, Inc GI 275 ADI | 35 | 22% |
| Garmin International, Inc G3X Touch | 33 | 21% |
Other Beechcraft panels
From layout to fabricated panel
Lay out the Model 35 panel in the Panel Designer, then send it to our shop for CAD, Cut, Paint & Label.
